Seagull series Line-interactive UPS (500/800VA, 1U)

Seagull series Line-interactive 500VA, 800VA, UPS is true sine wave output, 1U RACK.

EMAIL

Seagull series Line-interactive UPS (500/800VA, 1U)

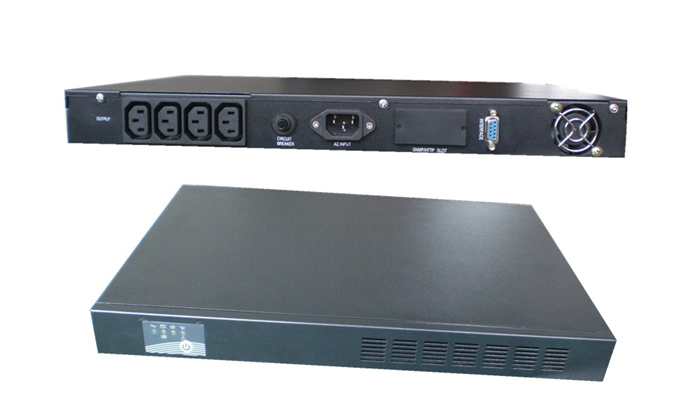

800 内页图.png




Seagull Series use line-interactive technology to fully protect your personal computers, workstation and small servers even in harsh

power environments. With built-in Boost and Buck function, the SSMART series can operate under a wide AC input voltage

while keeping steady output voltage. The wide AC input voltage avoids frequent transfers to battery mode, preserve maximum

 backup time for extreme power events and also increase battery life time.

The DB9 or SNMP CARD connectivity with power monitoring and management software provides useful power management

functions such as event logging and unattended file saving shutdown.


With the unique mechanical design in a 1U rack mount , users can support standalone equipment or loaded equipment racks

to save space. This flexible form factor allows standardization across multiple applications. It’s the smart solution for home

and office application.


Features:

Line-interactive, true step sine wave output

DC cold startup function

Boost and trim automatic voltage regulation (AVR)

  Gives higher application availability for correcting low and high voltage conditions without using battery

Generator compatible

LED status indicators

   Enables quick understanding and response to visual indicators showing UPS status

Safety agency approved

   Ensures the product has been tested and approved to work safely with the connected service provider equipment and              within the specified environment. CE approval and FCC class B

RS-232 connectivity

   Provides management of the UPS  RS-232

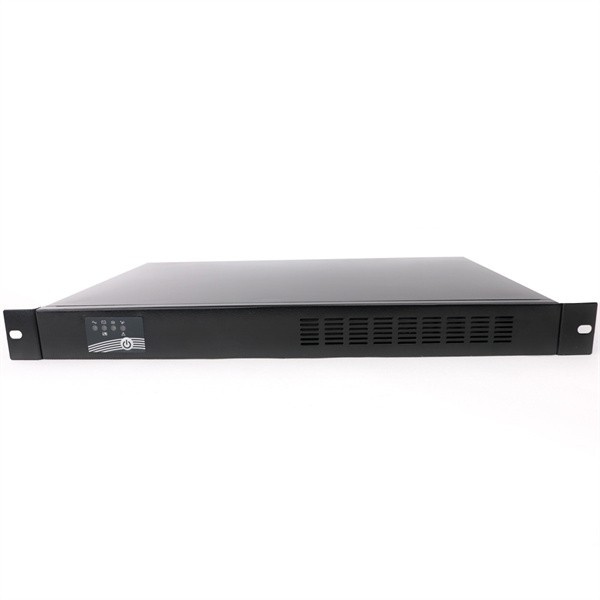

1U  Rack mount  compact  type design

SNMP SLOT is available


Datasheet

Model

SSMART 500

SSMART 800

Capacity

500VA / 300W

800VA / 500W

Overview

Surge Protection Only (VA)

500VA

800VA

Outlook

Rack

Design Type

Line Interactive

Waveform

Pure Sine wave

AVR Function

two step Boost, Buck

Input

Nominal Voltage

115 or 230Vac

Voltage Range

75~140V/150~275V

Frequency Range

60Hz-->115V/50Hz-->230V±6Hz

Power Line Surge (115V/230V)

1482/320 Joules

Socket Type

Power Cord+C.B->115V  &  Inlet Socket+C.B->230V

Output

Nominal Voltage

115/230Vac

Voltage Range (AC Mode)

100~127V/198~253V

Voltage Range (Batt. Mode)

105~118V/210~235V

Frequency Stability

50/60Hz +/- 0.5%

Socket Q'ty (Backup+Surge)

(NEMA/IEC)*4

(NEMA/IEC)*4

Transfer Time

< 4ms (typical)

Overload

Protection (AC Mode)

  100%~120%   1min S/D

Protection (Batt Mode)

100%~ 120%->25Sec S/D,    >120%->immed UPS Off.

Battery

Backup Time-Full Load

2 ~3Minutes

Back-up Time-Half Load

3~20 minutes Depends on load

Capacity

6V/7AH*2

6V/9AH*2

DC Start

Yes

External Battery

No

Built-In Charger

1A Max.

Charger Over Protection

Yes

Charging When UPS off

Yes

Microprocessor Control

Yes

Communication

Intelligent Interface

RS232

Monitoring Software

UPSilon2000

SNMP Card(optional)

DP801 Slot

Conformance

Indicators LED Display

4 LEDs on Front Panel

LED Status

Line ,Batt Mode/charger,Overload/Fault

LCD

Optional

Environment

Temperature

0-40 degree C

Humidity

3000 Meters max Elevation 10-95%

Audible Noise

Less than 45dBA (at 1M)

Physical

Dimension(DxWxH)mm

300*430*44

350*430*44

Net Weight (Kg)

8.3kgs

10.8kgs


Research and development



Powtech is one of leading manfuacturer of AC/DC switching power supply (recitfier system), DC/AC power inverter, AC/AC UPS (Uninterrupted Power Supply) in China. Since our establishment in 1994, we are dedicated to serve our partner with whole solution of power system, professional technical solution , quality product, FAT test, factory product training, on-site training and many value-added services. we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold world widely, including Europe, South America, Africa, Middle East, Asia .

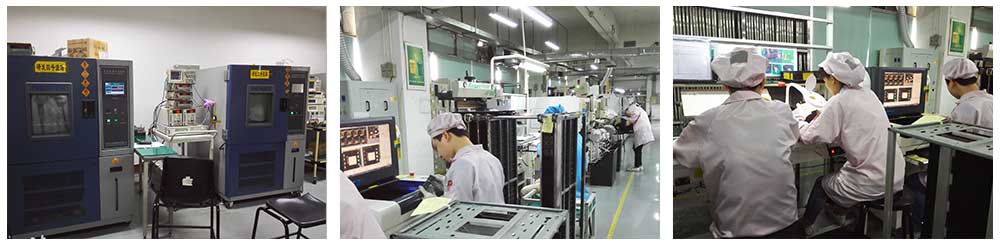

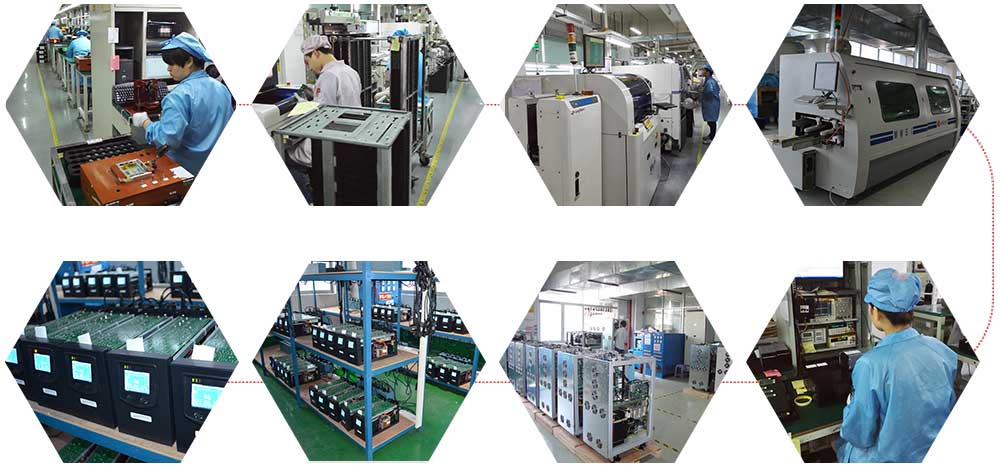

Workshop&Inspection
